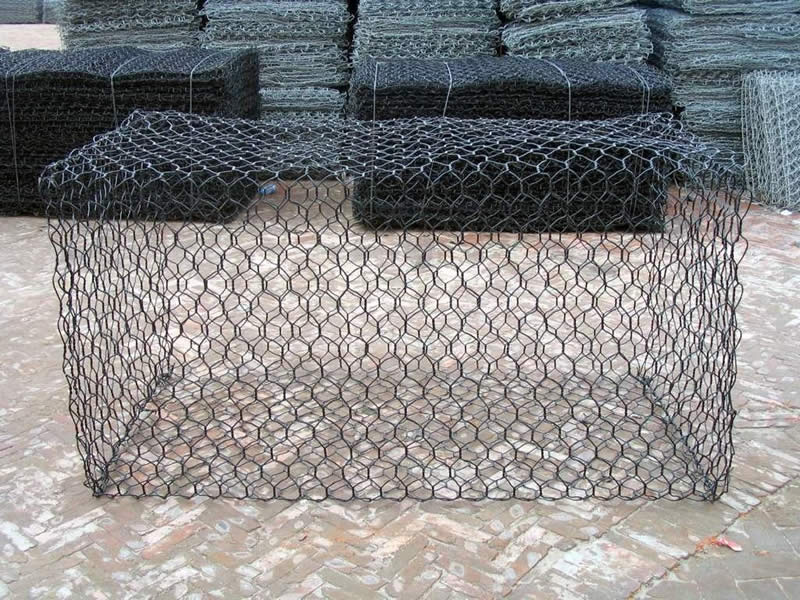

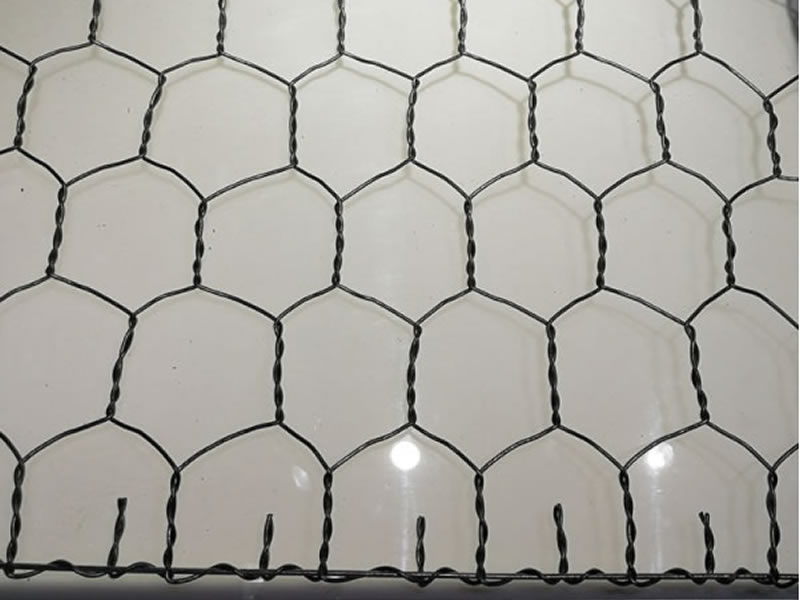

Gabion mesh are rectangular wire mesh baskets filled with rock at the project site to form flexible, permeable, monolithic structures such as retaining walls for commercial, industrial and road projects. When gabions are filled with stone they become large, flexible building blocks from which a broad range of structures can be built. Gabions are also used for erosion control, bank stabilization, channel linings, and weirs.

Material:

Galvanized wire: Low carbon steel wire,diameter 2.0mm-4.0mm,the tensile strength of the steel wire not less than 380Mpa，the surface of the steel wire are protected by the galvanized coatings, the thickness of the zinc coated can be customized.

Zinc-aluminium alloy steel wire: (Also called Galfan steel wire)this is a new popular material on the international. The corrosion resistance of this wire is 3 times of the traditional galvanized wire. The wire dia canbe 1.0mm-3.0mm, and the tensile strength not less than 1380Mpa.

PVC coated wire: Twisted gabions after coating PVC on the surface of the low carbon steel wire. The PVC coating can give great protection on the heavy-pollution environment. And the alternatively colors can make it harmonious between the gabions and the surrounding environment.

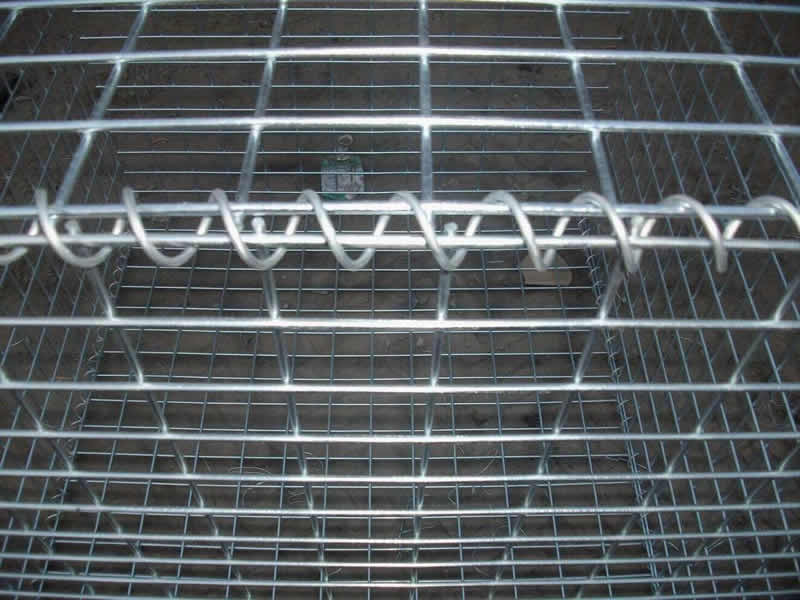

Welded Gabion Mesh

Welded gabion is made of high quality low carbon steel wire, in strict accordance with BS1052: 1986 standard through automation, precision and accurate processing machinery and equipment welding row after forming, then it use electro-galvanized, hot dip galvanized, coated, dip or Galfan and other processes where the surface passivation, plastics processing.

Welded gabions that assemble the front and rear panels, floor and partitions after forming, and then compressed, and the final package together with the network cover with spiral binding wire. All good lashing folded gabion products, is an independent entity. Spiral binding wire into the box away, in order to ensure quality, save in a dry environment.

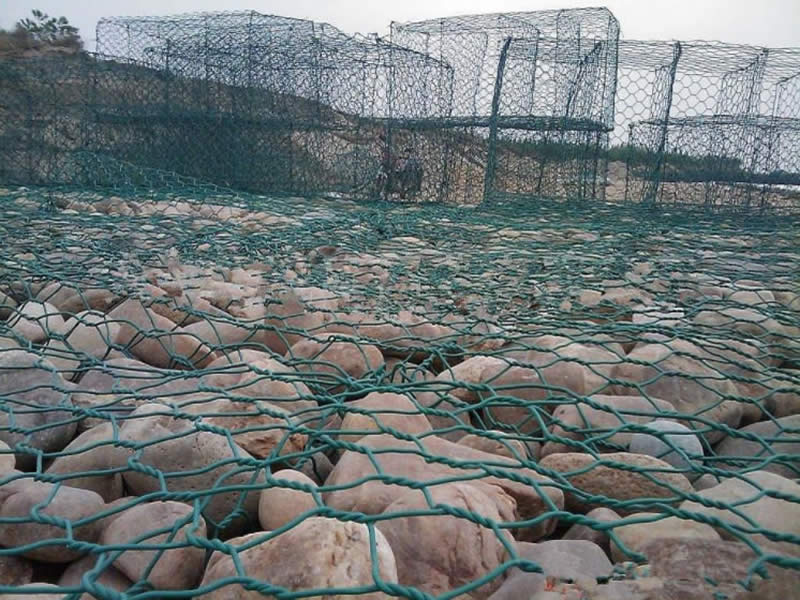

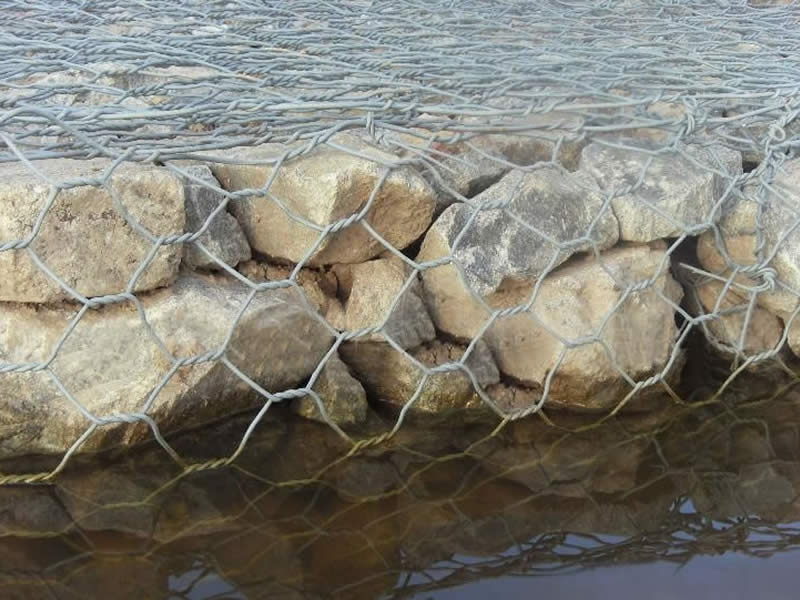

Gabion applications:

Control and guide of water or flood;
Flood bank or guiding bank;
Preventing of rock breaking;
Water and soil protection;
Bridge protection;
Strengthening structure of soil;
Protection engineering of seaside area.
