Wedge Wire Filter
Wedge wire is a welded steel structure, mainly used for filtration, separation and retention media.
 |
Wedge wire is a welded steel structure, mainly used for filtration, separation and retention media.It consists of surface profiles, usually V-shaped, that are resistance welded onto support profiles. The distance between the surface profiles is controlled very accurately, as it forms the slot through which the filtrate flows.
Filtrations Direction
The direction of the flow is determined by the position of the surface profiles in relation to the support profiles. Wedge wire screens are either flow-out-to-in (FOTI) or flow-in-to-out (FITO).
Each Wedge Wire screen product is custom designed to suit the specific requirements of the customer and to enable a relatively low cost and high performance solution for the screening application.The high open area of the Wedge Wire screen provides excellent capacity. Wedge Wire screen offers continuous slot openings that widen inwardly so that particles tend to pass through the screen.The all-welded stainless steel construction produces high strength and extended service life suitable for many screening applications in numerous industries.
Advantages
Non-clogging: the continuous slot formed by the V-shaped surface wires ensures a two-point contact between the particles and the slot, which minimizes clogging.
High-precision slot sizes: precise slot sizes are available to meet customer′s requirements.
Surface filtration: the V-shaped surface wires allow easy cleaning by mechanical scraping or back flushing.
Low pressure-drop
Strong construction: for most applications, the wedge wire screen is self-supporting, because of the welding at each intersection.

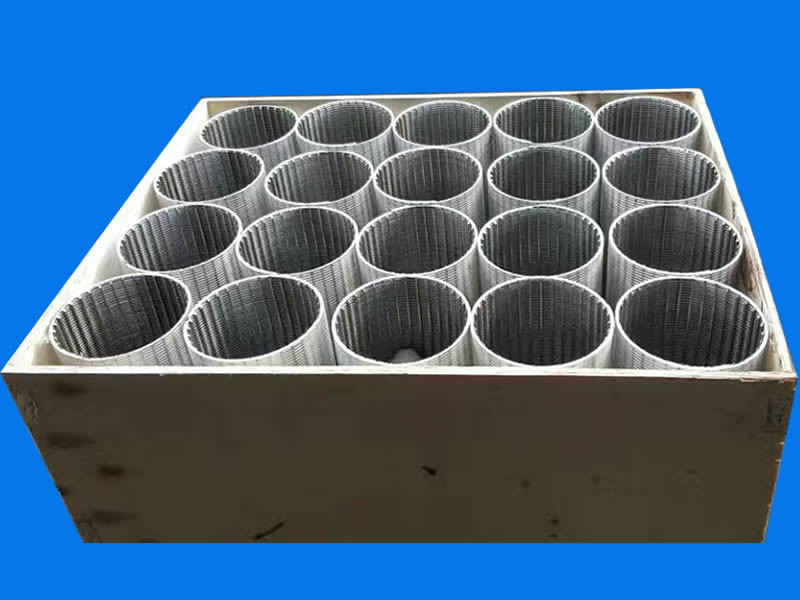

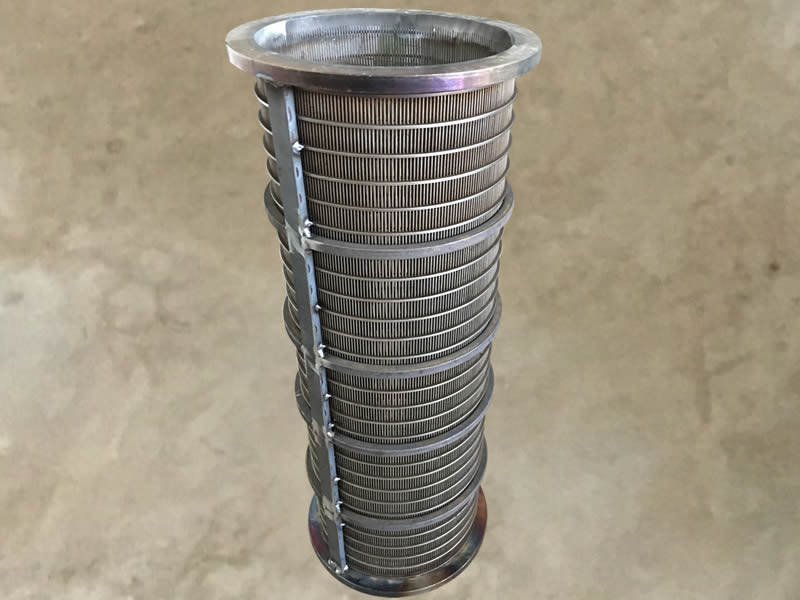

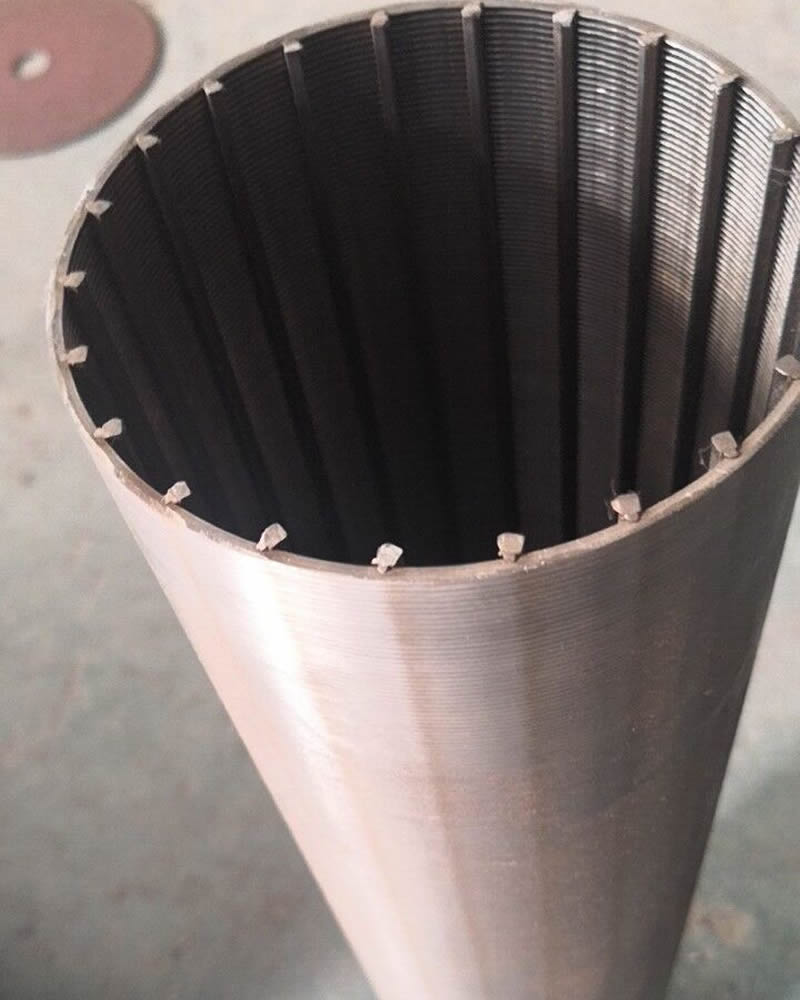

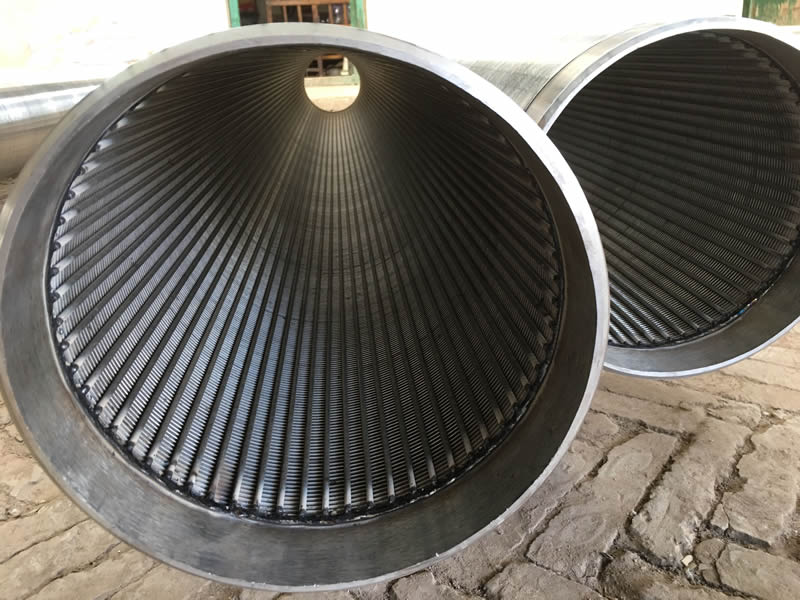

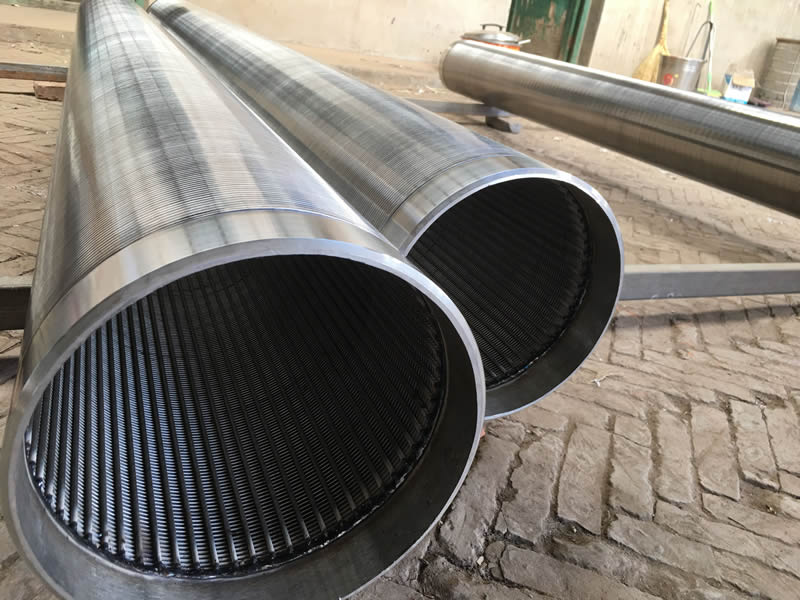

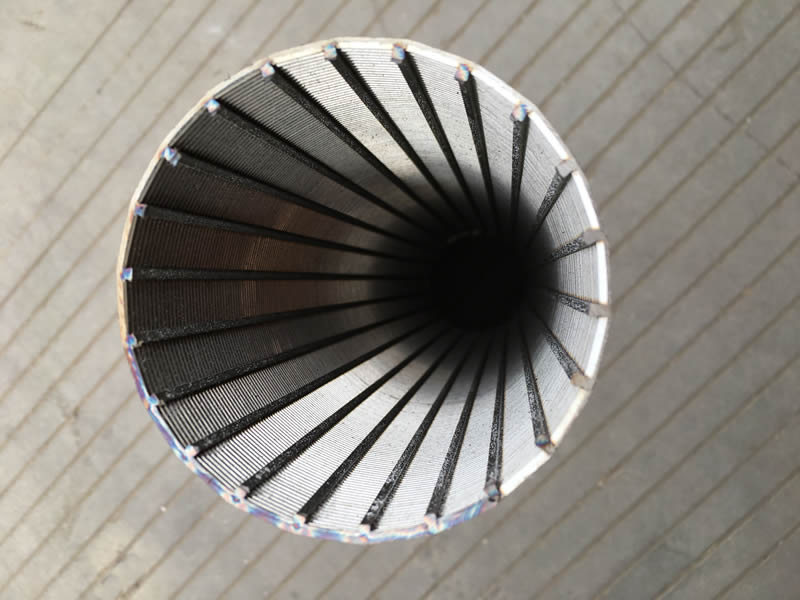

Wedge Wire Filter
Wedge Wire Filter
Wedge Wire Filter
Wedge Wire Filter
