Sintered Wire Mesh
Sintered wire mesh metal filter cloth is a porous metal plate made from multilayer stainless steel wire mesh, and sintered into one metal panel.
 |
Sintered Wire Mesh Filters - a New Fine Materials for Filtration
Sintered wire mesh metal filter cloth is a porous metal plate made from multilayer stainless steel wire mesh, and sintered into one metal panel. It is usually consists of 5 layer (or 6-8 layer) mesh: protect mesh layer, filter mesh layer, protection mesh layer, reinforcement mesh layer, and reinforcement mesh layer. With high mechanical strength and wide filter rating ranges, sintered filters are a new fine materials for filtration used in food, beverage, water treatment, dust removing, pharmaceutical, and polymer industry.
The materials of sintered wire mesh commonly is stainless steel 304, SS316,SS316L, but Alloy Steel Hastelloy, Monel, Inconel and other metal or alloy as materials also available according customers filter process requirement. Sintered stainless steel filter is the most widely used type among all the materials due to its excellent chemical stability and long service life.
The protect mesh layer and filter layer are fine stainless steel woven wire mesh, and reinforcement mesh layer can be plain woven, dutch woven type wire or perforated metal sheet.

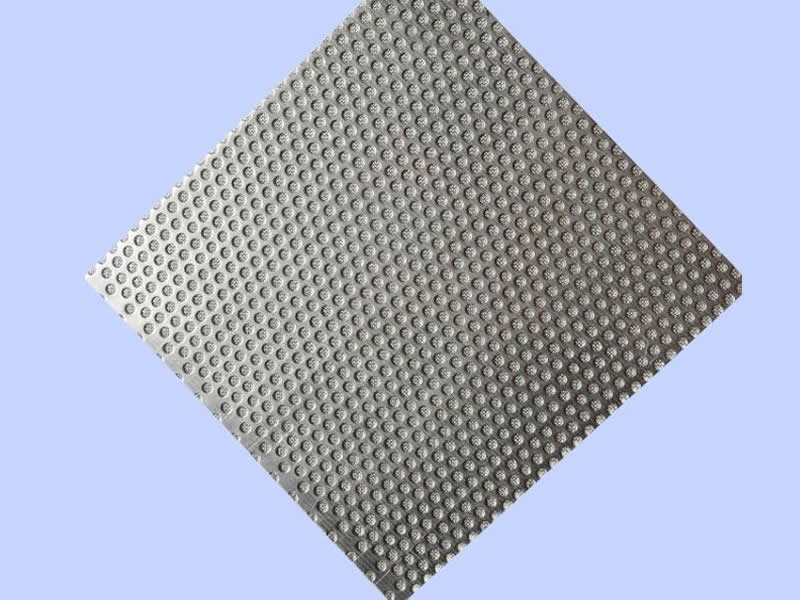

Perforated Metal Sintered Filter

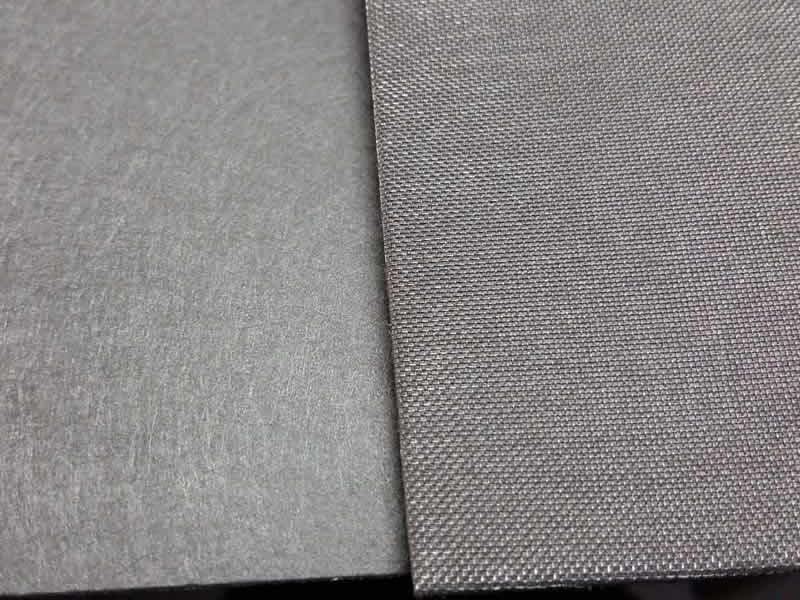

Sintered Metal Fiber

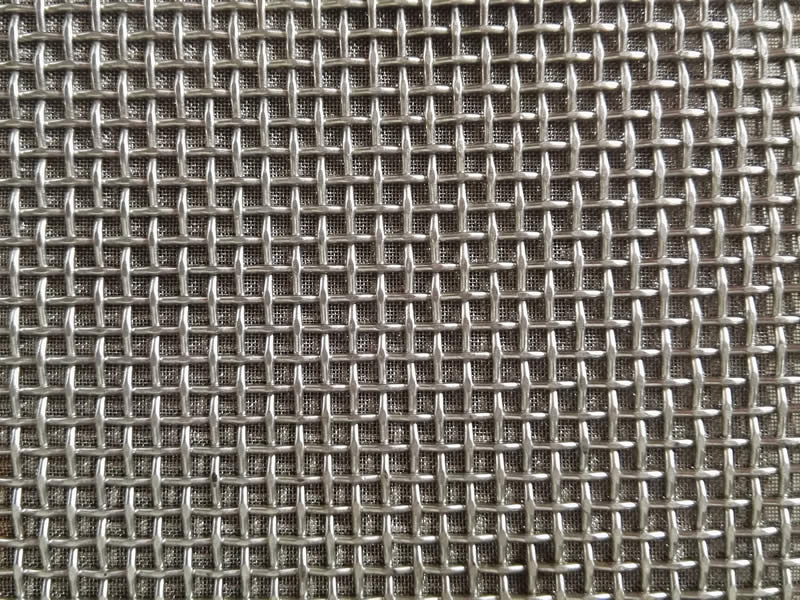

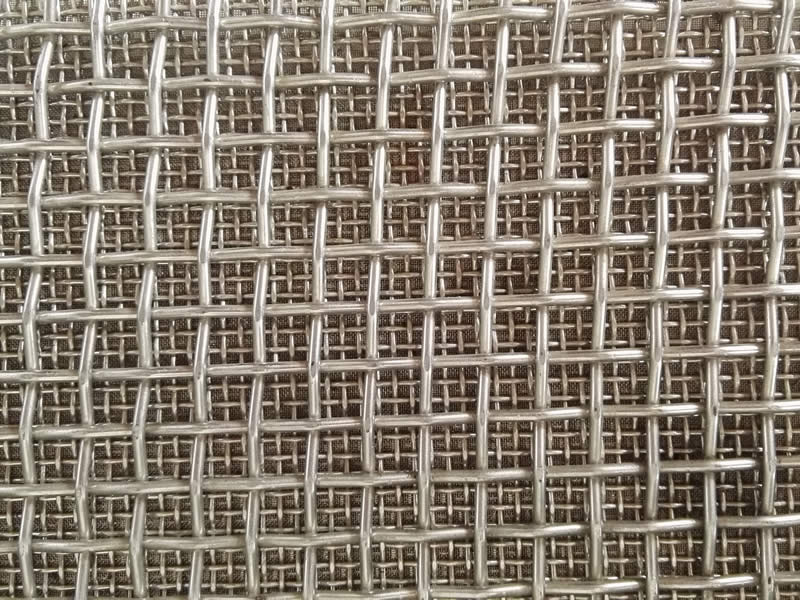

Square Mesh Sintered Cloth

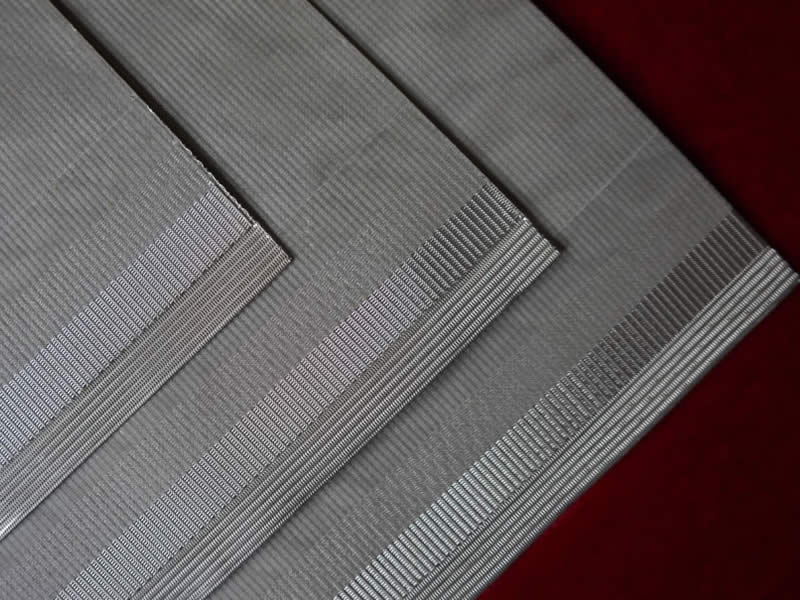

Standard 5 Layers Sintered Mesh
