How To Order Welded Wire Mesh
Author: Views: Loading... Publish Time: 18-01-24, 08:45 AM
Surface Treatment
Just send us where are you preparing using for it, the professional advicewhich type is fit can be given.

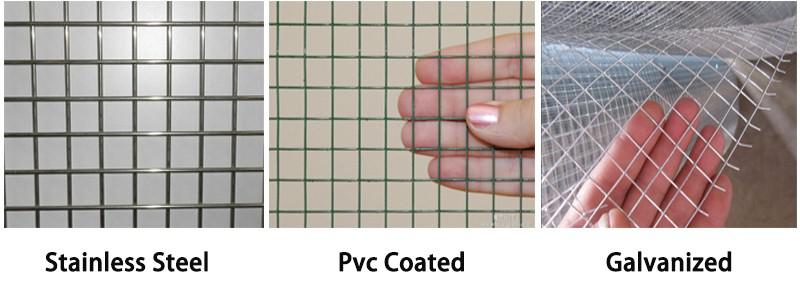

Products Show

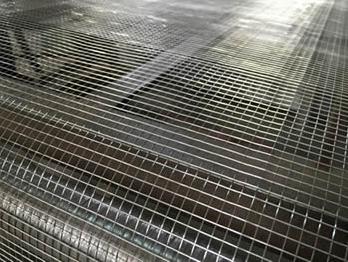

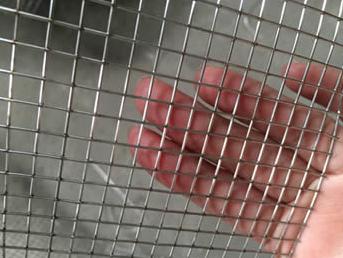

Type 1:Stainless Steel Welded Wire Mesh
| Stainless Steel Welded Wire Mesh: | ||
| Opening | Wire Diameter <BWG> | |
| In inch | In metric unit (mm) | |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
| 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |

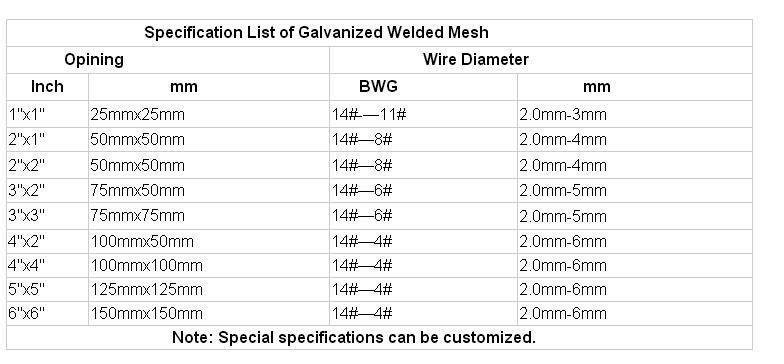

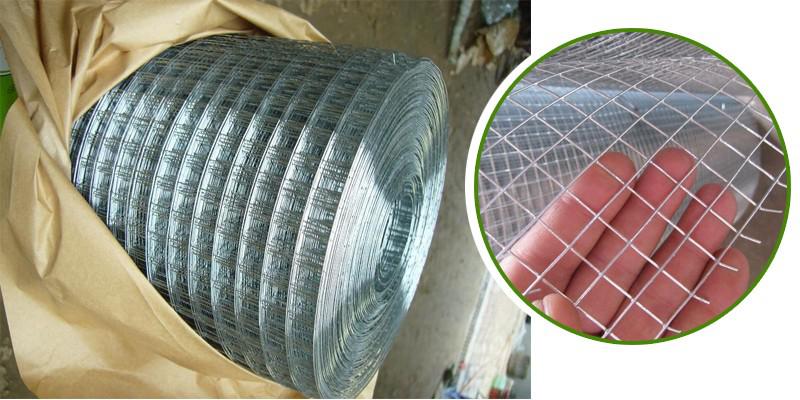

Type 2:Galvanized Welded Wire Mesh
The Galvanized Welded Mesh Mainly have two type:
1.Galvanized:hot dipped galvanized,electric galvanized
2.Type of galvanizing:Galvanized after welding,Galvanized before welding

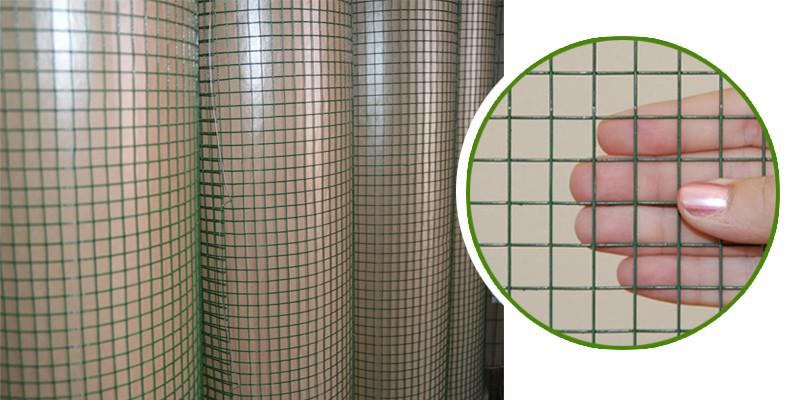

Type 3:PVC Coated Welded Wire Mesh
| PVC Coated Welded Mesh: | ||
| Opening | Wire Diameter(BWG) | |
| In inch | In metric unit(mm) | |
| 1/4"x1/4" | 6.35mx6.35mm | 21,22,23,24,24,25 |
| 1/2"x1/2" | 12.7mmx12.7mm | 16,17,18,19,20,21 |
| 3/4"x3/4" | 19mmx19mm | 16,17,18,19,20,21 |
| 1"x1" | 25.4mmx25.4mm | 15,16,17,18,19,20 |
| Technical Note: 1.Standard roll length:30m;width:0.5m to 2.5 2.Special sizes avaliable as request 3.Packing:in wooden pallet or in rolls .Custom packing available at request | ||

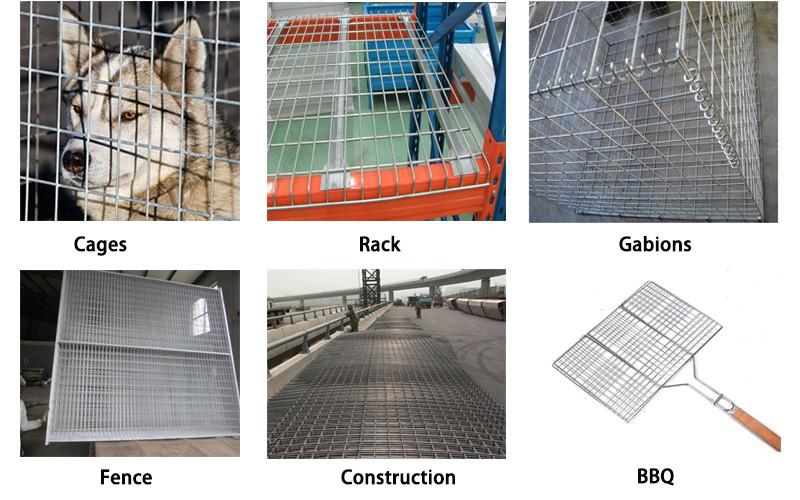

Application
