Plain Steel Wire Mesh
Plain Steel Wire Mesh
Normally, this kind of wire mesh has standard opening sizes, uniform opening, good permeability and high strength. Widely used in extrusion equipment for plastic ,rubber and so on.
 |
Material: low carbon
Weaving type: plain weave,twill weave ,herringbone weave
Mesh: 3-80mesh
Width: 1.0m,1.50m,2.0m
Usage: widely used in extrusion equipment for plastic ,rubber and so on.
| PLAIN WEAVE | ||
| MESH（INCH） | WIRE DIA.(mm) | APERTURE(mm) |
| 8 | 0.710 | 2.465 |
| 0.600 | 2.575 | |
| 10 | 0.650 | 1.89 |
| 0.550 | 1.99 | |
| 12 | 0.600 | 1.516 |
| 0.500 | 1.616 | |
| 14 | 0.500 | 1.314 |
| 0.450 | 1.364 | |
| 0.400 | 1.138 | |
| 16 | 0.400 | 1.188 |
| 18 | 0.400 | 1.011 |
| 0.350 | 1.061 | |
| 20 | 0.400 | 0.87 |
| 0.350 | 0.92 | |
| 30 | 0.300 | 0.54 |
| 0.250 | 0.59 | |
| 40 | 0.250 | 0.39 |
| 0.200 | 0.44 | |
| 50 | 0.180 | 0.328 |
| 0.160 | 0.348 | |
| 60 | 0.160 | 0.263 |
| 0.150 | 0.273 | |
| 80X70 | 0.135 | |
| AVAILABLE IN WIDTH：0.60M-1.5M | ||
| DUTCH WEAVE | |
| MESH（INCH） | WIRE DIA.(mm) |
| 12X64 | 0.58X0.40 |
| 14X88 | 0.50X0.33 |
| 24X110 | 0.35X0.25 |
| 30X150 | 0.23X0.18 |
| 40X200 | 0.18X0.13 |
| 30X150 | 0.23X0.16 |
| AVAILABLE IN WIDTH：0.60M-1.5M | |

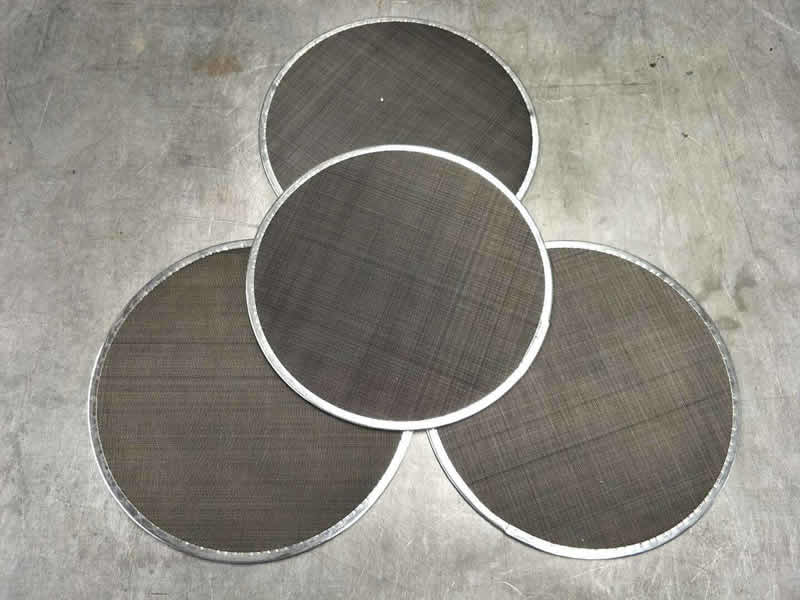

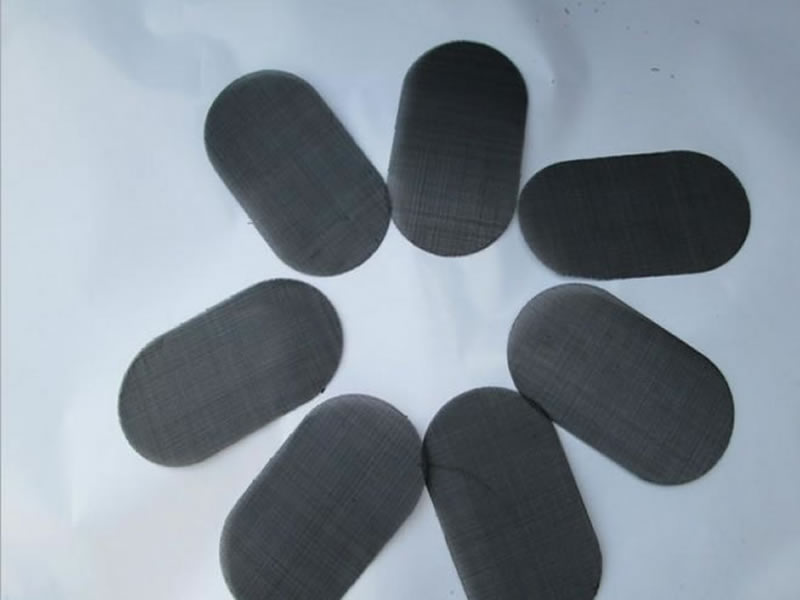

Oval Steel Cloth Discs
Plain Steel Wire Mesh

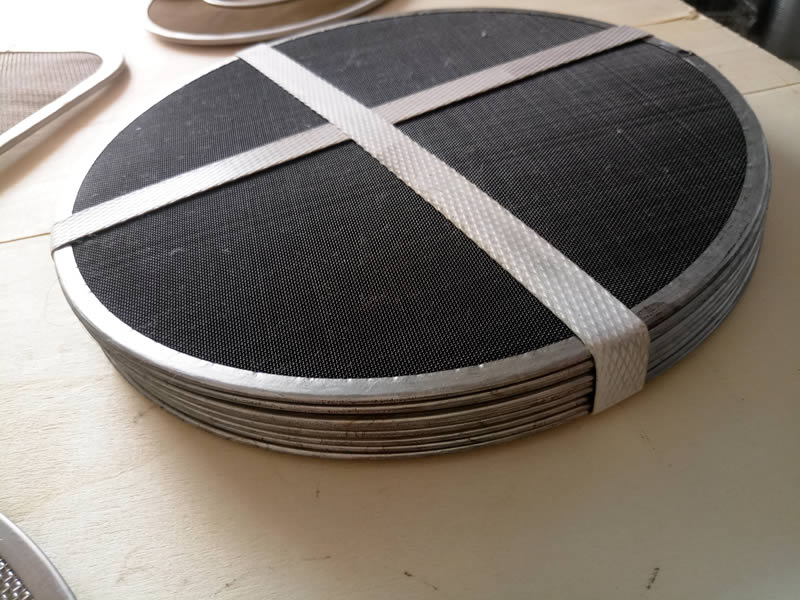

Plain Steel Wire Cloth Discs With Wrapped Edge

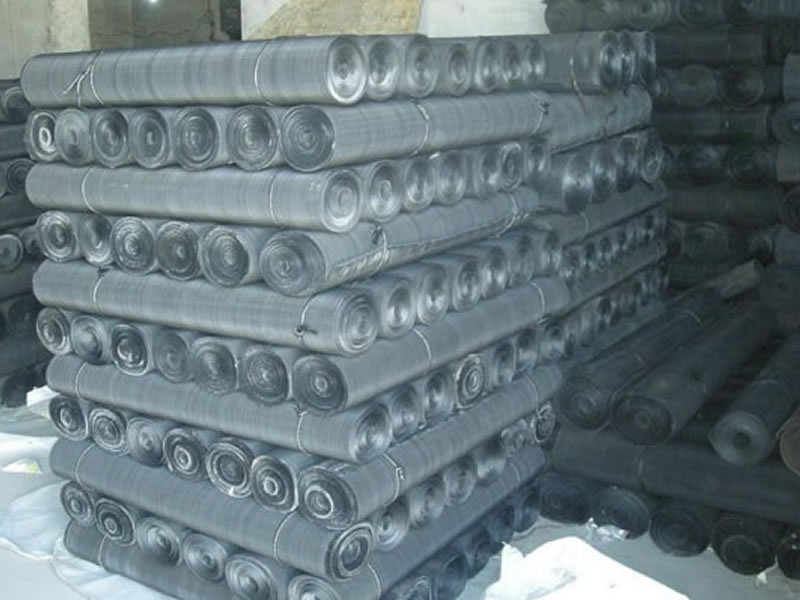

Plain Steel Wire Cloth
