Knitted Gas Liquid Filter
Knitted Gas Liquid Filter Craft: through layered, spiral wound or compressed, produces a tortuous path for highly effective particle capture.
 |
Material: stainless steel 304,304L,316,316L,317,310S,321,304M,434, brass, copper, monel, nickel, tiatnium, 1Cr18Ni9Ti, Cr20Ni80, Cr20Ni50, galvanized, low carbon iron.
Wire diameter: 0.1-0.55mm flat wire or round wire. Most common: 0.20mm-0.25mm.
Hole Sizes: 4mm×3mm 5mm×6mm 2mmx4mm, 4mmx5mm etc.
Hole shape: irregular
Width: 40mm, 80mm, 100mm, 150mm, 200mm, 300mm, 400mm, 500 mm, 600mm, etc.
Length: 30-200m, customized size is available.
Thickness: 0.12mm-2.5mm, customized size is available
Craft: through layered, spiral wound or compressed, produces a tortuous path for highly effective particle capture.
Surface: flat-type and corrugated type

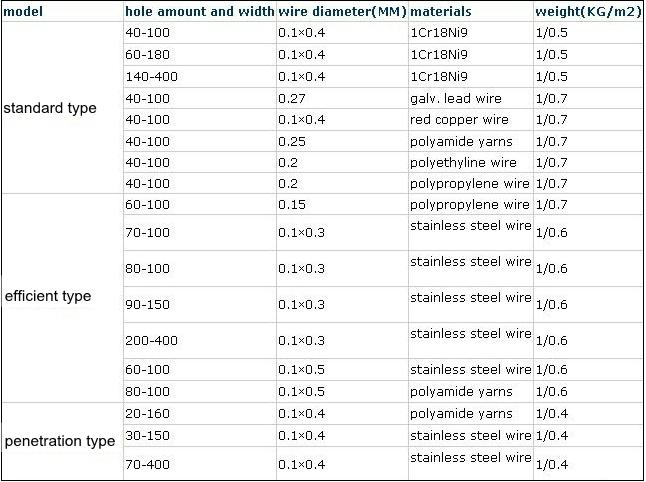

Gas-liquid filter mesh Specification:
