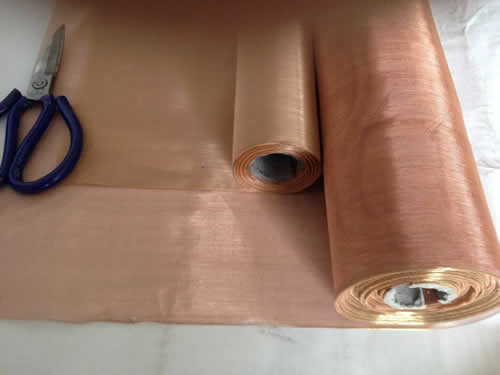

Brass wire mesh
Brass wire mesh is also named brass wire cloth that offers excellent electrical and thermal conductivity. It's an ideal mesh for fabricating gasoline filters and baskets for electro polishing. It possesses greater strength than copper or bronze. Applications include electronic security, aviation, outer space exploration and research, power generation, electronic information security, high-frequency scientific and medical equipment.
Brass Wire Mesh | |||||
Mesh Size | Wire Diameter | Aperture | Weight | ||
/inch | /cm | SWG | mm | mm | kgs/M2 |
10 | 3.94 | 24 | 0.508 | 2.03 | 1.43 |
12 | 4.72 | 26 | 0.457 | 1.66 | 1.39 |
14 | 5.51 | 27 | 0.417 | 1.4 | 1.35 |
16 | 6.3 | 29 | 0.345 | 1.24 | 1.05 |
18 | 7.09 | 30 | 0.315 | 1.1 | 0.99 |
20 | 7.87 | 30 | 0.315 | 0.96 | 1.1 |
22 | 8.66 | 30 | 0.315 | 0.84 | 1.21 |
24 | 9.45 | 30 | 0.315 | 0.74 | 1.32 |
26 | 10.24 | 31 | 0.295 | 0.68 | 1.25 |
28 | 11.02 | 31 | 0.295 | 0.61 | 1.35 |
30 | 11.81 | 32 | 0.247 | 0.6 | 1.01 |
32 | 12.6 | 33 | 0.254 | 0.54 | 1.14 |
34 | 13.39 | 34 | 0.234 | 0.51 | 1.03 |
36 | 14.17 | 34 | 0.234 | 0.47 | 1.09 |
38 | 14.96 | 35 | 0.213 | 0.46 | 0.95 |
40 | 15.75 | 36 | 0.193 | 0.44 | 0.82 |
44 | 17.32 | 37 | 0.173 | 0.4 | 0.73 |
46 | 18.11 | 37 | 0.173 | 0.38 | 0.76 |
48 | 18.9 | 37 | 0.173 | 0.36 | 0.8 |
50 | 19.69 | 37 | 0.173 | 0.34 | 0.83 |
60 | 23.62 | 37 | 0.173 | 0.25 | 0.99 |
70 | 27.56 | 39 | 0.132 | 0.23 | 0.68 |
80 | 31.5 | 40 | 0.122 | 0.2 | 0.66 |
90 | 35.43 | 41 | 0.112 | 0.17 | 0.63 |
100 | 39.37 | 42 | 0.012 | 0.24 | 0.01 |
120 | 47.24 | 44 | 0.081 | 0.13 | 0.44 |
140 | 55.12 | 46 | 0.061 | 0.12 | 0.29 |
150 | 59.06 | 46 | 0.061 | 0.11 | 0.31 |
160 | 62.99 | 46 | 0.061 | 0.1 | 0.33 |
180 | 70.87 | 47 | 0.051 | 0.09 | 0.26 |
200 | 78.74 | 47 | 0.051 | 0.08 | 0.29 |

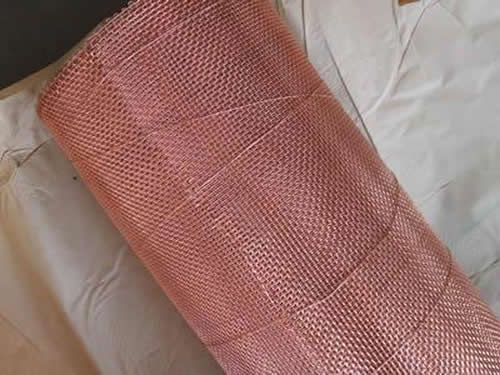

Red Copper Wire Mesh
Red Copper Wire Mesh is woven with Pure copper wire 99.9%, Annealing to make the wire more flexible, Class A process.
The soft and malleable properties of copper metal make it ideal for woven wire mesh and wire cloth.
It is often used in industry for its properties of high electrical conductivity and thermal conductivity as it conducts heat up to eight times better than other commonly used metals.
Copper Wire Mesh | |||||
Mesh Size | Wire Diameter | Aperture | Weight | ||
/inch | /cm | SWG | mm | mm | kgs/M2 |
4 | 1.57 | 22 | 0.71 | 5.64 | 1.12 |
5 | 1.97 | 24 | 0.55 | 4.53 | 0.84 |
8 | 3.15 | 26 | 0.45 | 2.73 | 0.9 |
10 | 3.94 | 27 | 0.41 | 2.13 | 0.93 |
20 | 7.87 | 30 | 0.31 | 0.96 | 1.06 |
22 | 8.66 | 32 | 0.27 | 0.88 | 0.89 |
24 | 9.45 | 33 | 0.25 | 0.81 | 0.83 |
40 | 15.75 | 38 | 0.15 | 0.49 | 0.5 |
44 | 17.32 | 39 | 0.13 | 0.45 | 0.41 |
50 | 19.69 | 40 | 0.12 | 0.39 | 0.4 |
50 | 19.69 | 41 | 0.11 | 0.4 | 0.33 |
60 | 23.62 | 42 | 0.1 | 0.32 | 0.33 |
60 | 23.62 | 40 | 0.12 | 0.3 | 0.48 |
80 | 31.5 | 40 | 0.12 | 0.2 | 0.64 |

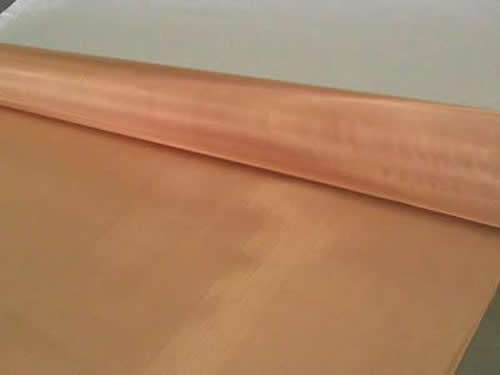

Phosphor Bronze Wire Mesh
Phosphor bronze wire is an alloy of copper and zinc, offers much better abrasion resistance, better corrosion resistance and lower electrical conductivity as compared with copper wire. Our company can supply phosphor bronze wire mesh or phosphor bronze wire cloth from 1 mesh to 400mesh. Width from 0.6m to 1.3m, length from 15m to 100m.
Phosphor Bronze Wire Mesh | |||||
Mesh Size | Wire Diameter | Aperture | Weight | ||
/inch | /cm | SWG | mm | mm | kgs/M2 |
60 | 23.62 | 37 | 0.173 | 0.25 | 0.99 |
60 | 23.62 | 38 | 0.15 | 0.27 | 0.75 |
80 | 31.5 | 40 | 0.122 | 0.196 | 0.66 |
80 | 31.5 | 42 | 0.1 | 0.22 | 0.44 |
100 | 39.37 | 42 | 0.012 | 0.242 | 0.01 |
100 | 39.37 | 43 | 0.09 | 0.14 | 0.45 |
120 | 47.24 | 44 | 0.081 | 0.131 | 0.44 |
120 | 47.24 | 45 | 0.07 | 0.14 | 0.33 |
140 | 55.12 | 46 | 0.061 | 0.12 | 0.29 |
150 | 59.06 | 46 | 0.061 | 0.108 | 0.31 |
160 | 62.99 | 46 | 0.061 | 0.098 | 0.33 |
180 | 70.87 | 47 | 0.51 | 0.09 | 0.26 |
200 | 78.74 | 47 | 0.51 | 0.076 | 0.29 |
220 | 86.61 | 47 | 0.05 | 0.065 | 0.32 |
250 | 98.43 | 48 | 0.041 | 0.061 | 0.23 |
280 | 110 | 48.5 | 0.035 | 0.056 | 0.19 |
300 | 118 | 49 | 0.031 | 0.054 | 0.16 |
320 | 128 | 49 | 0.031 | 0.048 | 0.17 |
330 | 130 | 49 | 0.03 | 0.046 | 0.17 |
350 | 138 | 49 | 0.031 | 0.042 | 0.19 |
360 | 142 | 49 | 0.031 | 0.039 | 0.19 |
400 | 158 | 50 | 0.025 | 0.038 | 0.14 |
